Need Schematic & BoardView for Lenovo Legion 5 16IRX9 – ILYGA LA-N211P Rev 1A (Short Circuit Repair)

Discussion & Solutions
1

Hello everyone,

I am looking for the schematic PDF and BoardView file for the following motherboard:

  • Laptop Model: Lenovo Legion 5 16IRX9

  • Motherboard: Compal ILYGA LA-N211P

  • Revision: Rev 1A

  • Board Date: 2023-10-19

The motherboard has a short-circuit issue, and I need the schematic and boardview files for component-level diagnosis and repair. I have already identified the board number from the motherboard silkscreen. Some repair forums indicate that schematic and boardview files for this board exist. (BadCaps)

If anyone has:

  • Schematic PDF

  • BoardView (.BRD, .BDV, .CAD, .FZ)

  • Repair documentation

  • Download link or mirror

please share it or point me in the right direction.

Thank you for your help. Any assistance would be greatly appreciated. :folded_hands:

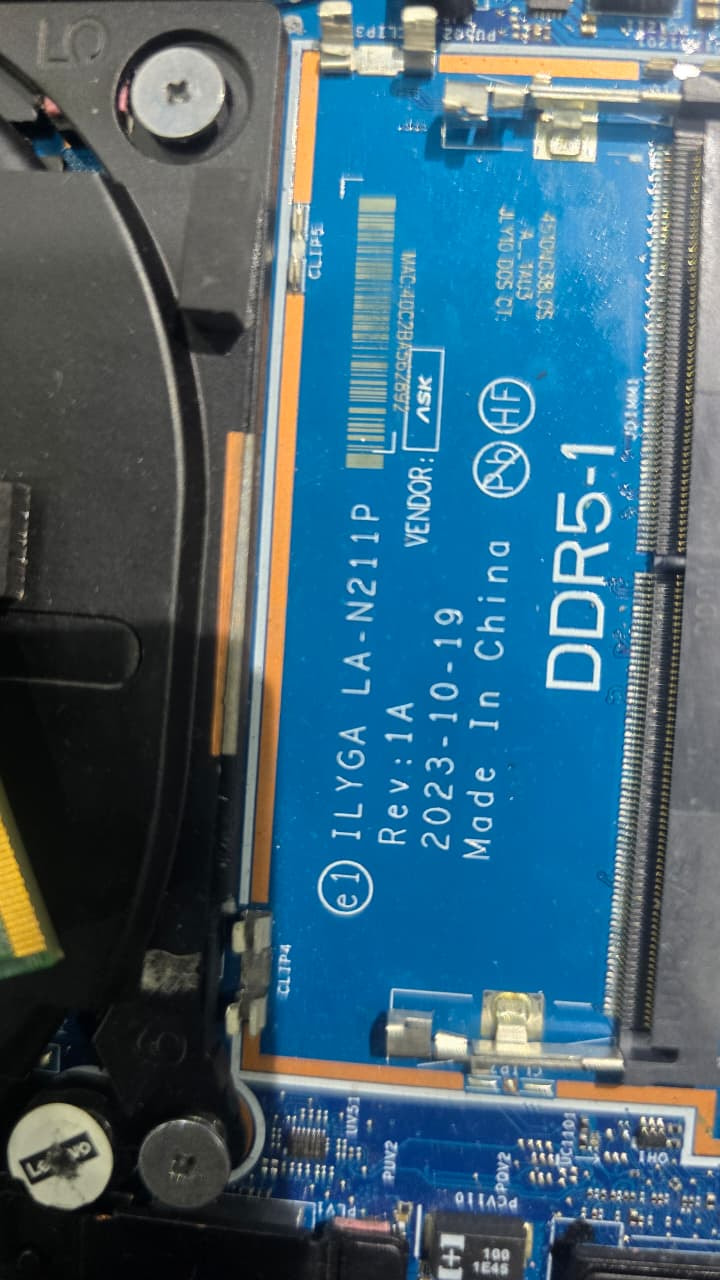

Motherboard: ILYGA LA-N211P Rev 1A

image720×1280 176 KB

2

Hey — you’ve got options for this board. Here’s everything:

5 Sources for LA-N211P Schematic + Boardview

:one: laptop-schematics.com — $20 (COMPLETE)

→ view/15665

:white_check_mark: Schematic Diagram (PDF) · BoardView CAD · BoardView viewer software · Power Block Diagram · APU SMBus · KBC SMBus · Thermal Block · Audio Block · CLK Block

Payment: Card / PayPal | Quality: Professional, direct from repair community

:two: BadCaps Forum — FREE

→ badcaps.net — Document & Software Archive → Schematics & Boardviews

Status: Active thread for LA-N211P (confirmed May 2026)

How to get:

  1. Register free account
  2. Go to: Document & Software Archive → Schematics and Boardviews
  3. Find LA-N211P thread
  4. Post request or check replies
  5. Community shares within 24–72 hours

:three: elvikom.pl — FREE

→ post305665

Format: BoardView .fz file | Language: Polish (use Google Translate) | Requires: forum registration

:four: indiafix.in — FREE

→ legion5

BIOS bin file + repair files | Password: indiafix | Supplementary for power rail reference

:five: pkbiosfix.com — FREE

→ threads/lenovo

Dedicated thread with BIOS + possible schematic links | Free registration required

Open the Files

Format Software
.CAD, .BRD OpenBoardView (free)
.FZ FlexBV (free version)
.BDV All-in-One BoardViewer
.PDF Any PDF reader

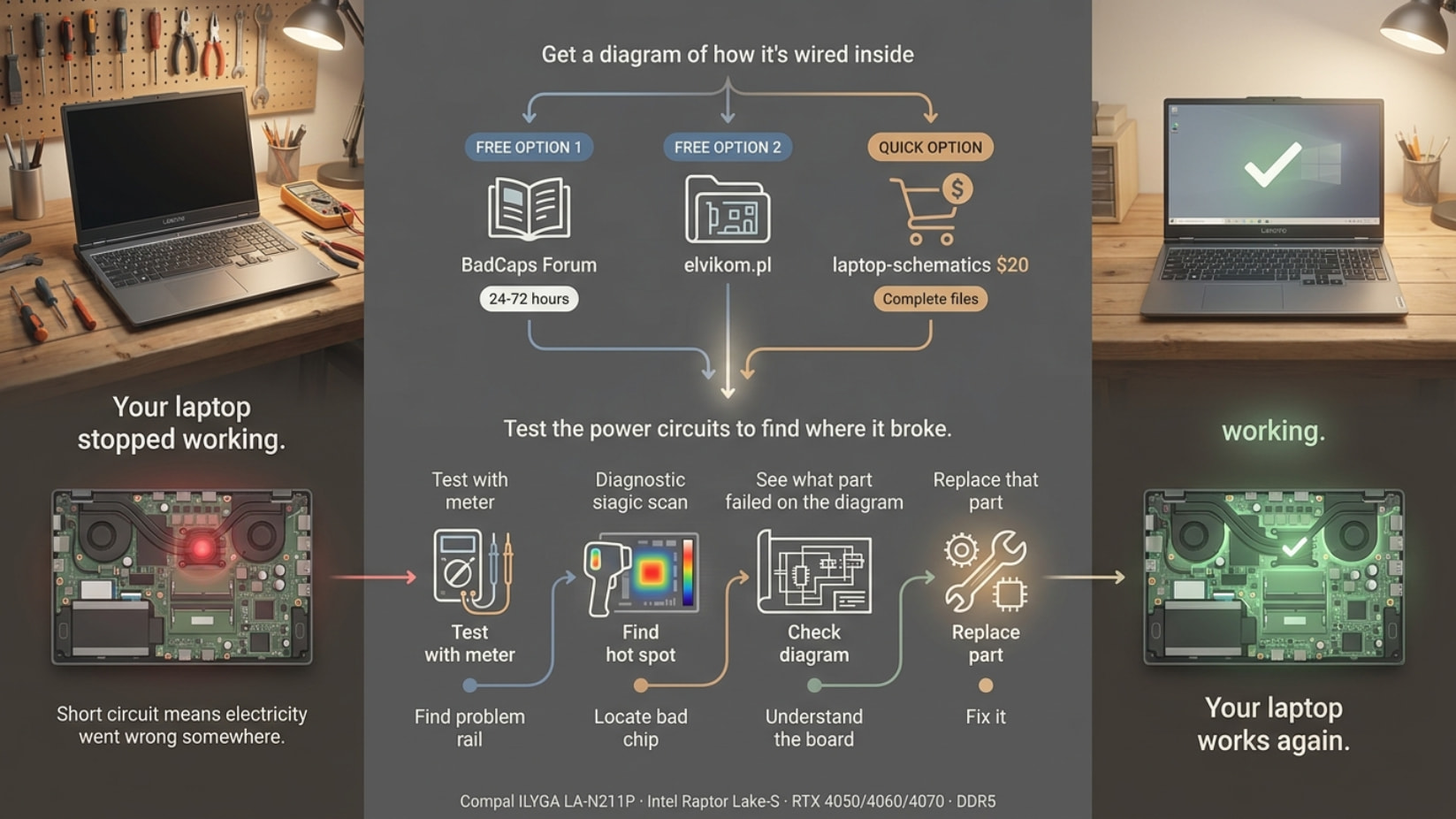

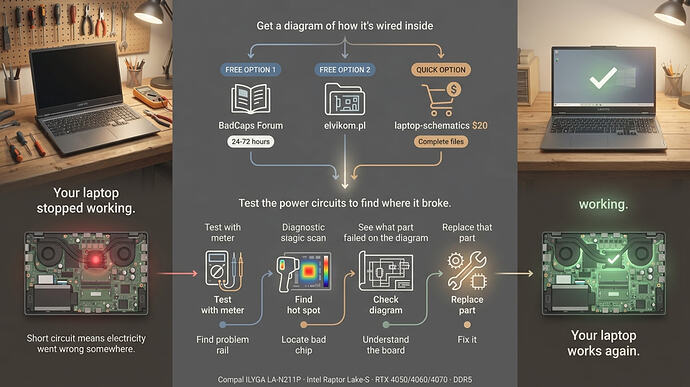

Find Your Short (4 Steps)

STEP 1 — Identify Affected Rail

  • Set multimeter to diode mode
  • Probe to GND: 19V (barrel) · 5VSB (standby) · 3.3V · 1.8V · CPU VCORE · GPU VCORE
  • Normal: 0.3–0.6V | Short: 0.000 or beep

STEP 2 — Inject Voltage (Safe Method)

  • Use bench PSU or 5V/1A phone charger
  • Connect to shorted rail
  • Use thermal camera or feel for hot component
  • Hot component = shorted IC found

STEP 3 — Common Culprits

  • MOSFETs near CPU VCORE
  • NVME SSD power MOSFETs
  • GPU power delivery MOSFETs
  • PU6201 area (RT6585CGQW voltage regulator)
  • Decoupling capacitors on power rails

STEP 4 — Use Schematic To:

  • Trace which IC controls the shorted rail
  • Find all capacitors on that rail
  • Identify MOSFETs in that power stage
  • Measure enable/feedback signals

Pro Tips

  • laptop-schematics.com $20 — complete package with all block diagrams, essential for Raptor Lake power rail tracing
  • Try BadCaps first — active thread, files shared free within 24–72 hours
  • Thermal camera ($30) — USB thermal (InfiRay P2 Pro) pays for itself on first board
  • Check PU6201 area first — RT6585CGQW voltage regulator is a common failure on Lenovo Legion Intel boards
  • Disconnect battery + EC power before probing — IT8258E EC can give false readings if powered

Action Plan

TODAY — Free first:

  1. Register at BadCaps → search “LA-N211P” in thread
  2. Check elvikom.pl → .fz boardview confirmed
  3. Start diode mode diagnosis NOW on all power rails

If free fails:
4. Buy from laptop-schematics.com ($20, worth it)

In parallel:
5. Start short-circuit testing immediately — don’t wait for schematic

Board: Compal ILYGA LA-N211P Rev 1A · CPU: Intel Raptor Lake-S · GPU: RTX 4050/4060/4070 · RAM: DDR5 · EC: LA1-VG-CX + IT8258E / IT8176

LA-N211P is well-documented in the repair community. BadCaps is your best free starting point. laptop-schematics.com is the most complete paid option. You’ve got this. :+1:

3

Thanks for the Solutions <3
